Connector - 1 Circuit
Molex 0.062" Series
Product Use
This Molex 0.062" Series, 1 Circuit Connector can be used both for power or signal applications.
Features
- Passive (friction lock)
- Male and female terminals may be used in either plug or receptacle housings
- Round terminals may be oriented in any direction for fast assembly
- Over 1,000 Mechanical Mating Cycles Life
- Molex 0.062" Series Connectors
Product Specifications
| Connector Type: | Wire-to-Wire |
| Number of Circuits: | 1 |
| Current Rating: (per circuit, max) | 5A |
| Voltage Rating: | 240 V |
| Wire Gauge (AWG): | 18-24 |
| Operating Temperature | 20 to 140 °F -6 to 60 °C |
Package Content
| Description | Part Number | Quantity | Price Each |
|---|---|---|---|

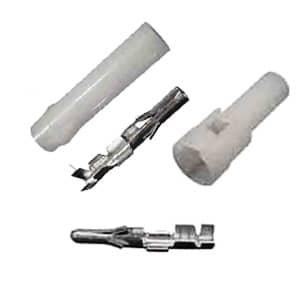

| 1 Circuit, Receptacle (M) | 03-06-1011 | 1 | $0.20 |
| 1 Circuit, Plug (F) | 03-06-2011 | 1 | $0.25 |
| Connector Pin (M) | 03-06-2103 | 1 | $0.20 |
| Connector Socket (F) | 03-06-1103 | 1 | $0.20 |
Pricing
US $0.85 each
